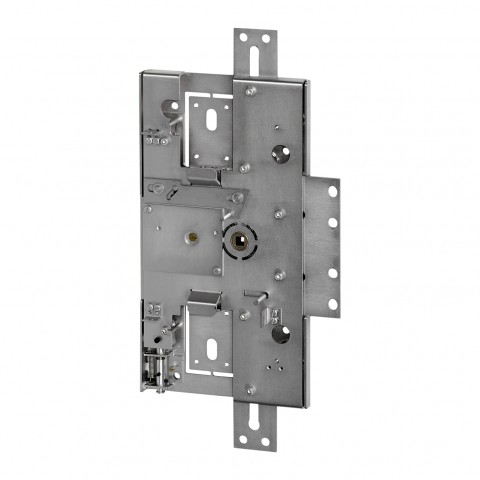

KABA MAUER - Defender 710 - 83421

1- to 4-sided bolt work for safes CEN II-V.

The bolt work is prepared for the use of a glass plate. Due to two patented front shaft supports in form of integrated massive steel elements a very high manipulation protection is achieved. During the opening process the blocking is released by the forward motion of the shafts II and III. Afterwards shaft I is drawn back.

No defined locking order in case of 2-lock operation.

Dimensions base plate 224 x 420 mm

Installation applications
- 2-lock operation
- 3-sided (front shaft I, upper shaft II, lower shaft III)
- Shaft I throw 25 mm, shaft II/III throw 34 mm, opening angle of handle 110°
- Shaft connections: Ø 10.5 mm
- Lock mounting: 4 M6 threaded bushes
- Mounting position of locks: vertical, bolt up/down, bolt throw 8.7 - 12 mm, blocking of horizontal shafts
- For right hand doors, opening clockwise

Manipulation protection
- Support shaft I, release by forward motion of the shafts II/III
- 2 integrated relockers, detent in blocking position
- Prepared for use of a glass plate
- Indirect blocking point

Steel chromated

Gear drive with follower 11 mm

Prepared for Ristow-Element 4.4

Several Options Available Please Call in to Order
