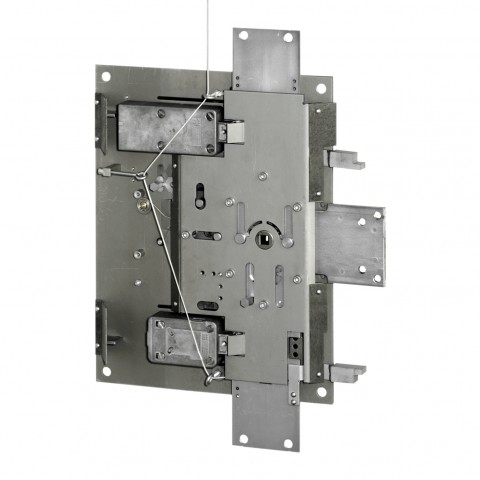

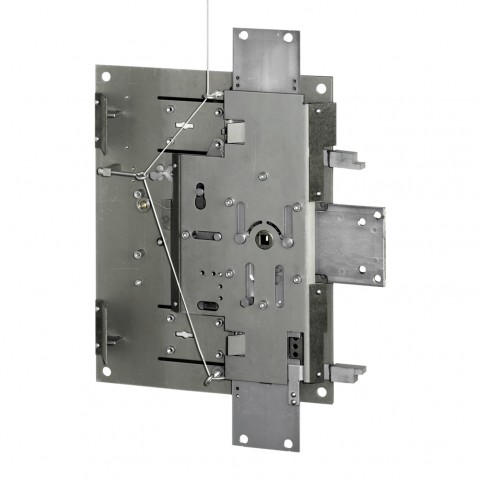

KABA MAUER - Boltwork Defender 720 - 83501

1- to 3-sided bolt work for safes CEN II-V.

The bolt work is protected by manganese steel plates. Tightening cords are used as additional protection. Due to two patented front shaft supports in form of integrated massive steel elements a very high manipulation protection is achieved. During the opening process the blocking is released by the forward motion of the shafts II and III. Afterwards the shaft I is drawn back.

No defined locking order in case of 2-lock operation.

Dimensions base plate 325 x 415 mm

Installation applications
- 2-lock operation
- 3-sided (front shaft I, upper shaft II, lower shaft III)
- Shaft I throw 30 mm, shaft II/III throw 39 mm, opening angle of handle 125°
- Shaft connections: Ø 10.5 mm
- Mounting position of locks: horizontal, bolt left, bolt throw 8.7 - 12 mm, blocking of vertical shafts
- Lock mounting: 4 M6 threaded bushes
- For right hand doors, opening clockwise

Manipulation protection
- High resistant shaft I, release by forward motion of the shafts II/III
- Base plate with riveted manganese steel plate, 2 mm thick
- Side manganese steel stripes
- Manganese steel angles as drilling protection
- Integrated relocker with tightening cord, polyester, 3 m length, detent in blocking position
- Indirect blocking points

Electrolytic galvanised steel, cutting edge blank

Gear drive with follower 11 mm

Prepared for Ristow-Element 4.4

Prepared for position indicator of shafts
