KABA MAS Unicon CL20 - Multi-Use Cabinet Locks

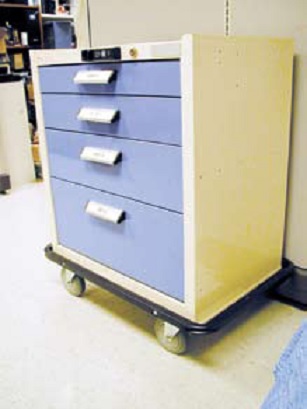

Safekeeping the contents of your carts, cabinets, drawers or lockers begins with the ability to effectively control, manage and monitor the employees who have been granted authorized access.
The CL20 multi-use cabinet lock is ideally suited for a variety of applications requiring shared access by multiple employees. Authorized users are assigned an exclusive User ID, ensuring control over who is granted access. As a recommended means for additional layer of security, you may require that authorized users select and enter a unique PIN in conjunction with their User ID.
Electronic locks have distinct advantages over their mechanical counterparts. The ability to accept access schedules, supply a listing of active users and store lock activity provides immediate visibility while offering the convenience required to make rapid changes when necessary.
AT A GLANCE
Economical Retrofit
Identical mounting hole patterns as the industry leading products, for ease of replacement in existing applications.
Access Control
Users are assigned a 3-digit user ID and can select a unique 5-digit PIN. Use of PIN is optional, but is suggested for added security.
Access Modes
SINGLE USER: Entering one valid combination required to open lock.
DUAL USER: Entering two valid combinations required to open lock.
Access Schedules
Can be set and maintained at the PC using Unicon™ Series Software and uploaded (transferred) to lock via Dallas iButton key fob.
Key Override
Key override sensor kit allows cabinet key to override lock and allow entry. This will be recorded in the lock audit.
Audit Trail
The user's ID is recorded with date and time stamp each time a function is performed on the lock. This includes both opening and closing events. (Requires Unicon™ CL Series Software.)
Wrong Try Lockout
After five consecutive failed combination attempts, lock disables for three minutes. Additional consecutive failed attempts will result in another three minute penalty after each failed attempt.
Unicon CL Series Software
The Unicon CL Series Software is an integral component of the Unicon CL20 multi-use cabinet lock. While basic lock functions can be performed at the lock without software, maximum convenience and full audit capability can only be achieved once the software has been installed
CL-20 FEATURES
Power Source: (2) High quality CR-2 Lithium 3v batteries (not supplied.)
35000 cycles at ambient temperature.

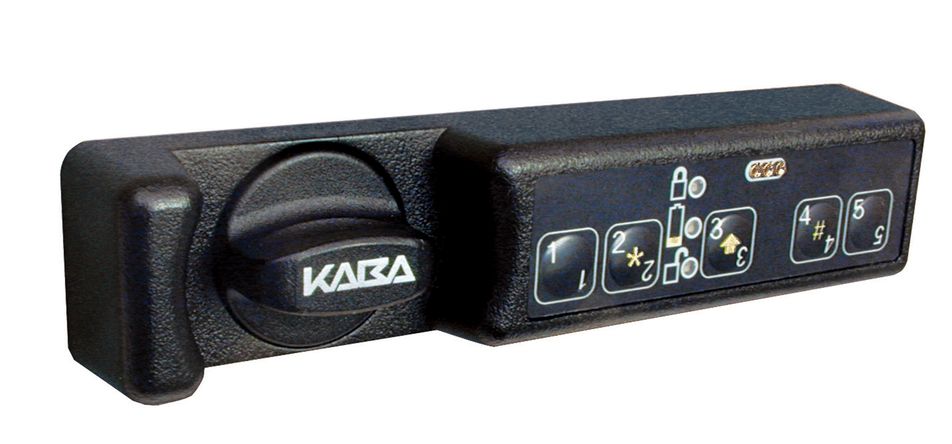

Keypad: One universal keypad allows for mounting lock in different orientations. Keypad has 5 buttons and three LEDs - lock open, lockclosed and battery low indicator.
Bolt/Cam Styles: Manual turn dead bolt, manual cam latch, or spring loaded latch bolt with variations in bolt and cam positioning allowed.
Bolt Throw: End throw, cross throw or combination of both.
Access Users: Independent Mode: (1) Master User, (124) Access users Supervisor/Subordinate Mode: (1) Master User, (3) Supervisors, (121) Subordinate access users.
Manage/Control: In Independent mode, the master user adds access users. In Supervisor/Subordinate mode, the master user adds supervisors.
Audit Trail: 400 events (including opening and closing) stored in the lock with time and date stamp, can be downloaded to PC via a Dallas iButton Reporting (Red) Key Fob. (Requires Unicon CL Series Software.)
Uploadable Programming: Information can be loaded at the PC and transferred to the lock via a Dallas iButton Programming (Teal) Key Fob. (Requires Unicon CL Series Software.)
Mechanical Construction: Lock front - Black, injection-mold polycarbonate, 1.25” (31.71 mm) x 5.63” (143 mm) x .85” (21.6 mm). Turn knob - Black powder coat zinc diecast, clutch mechanism prevents opening of lock when over-torqued.
Chamber - Metal electro-mechanical assembly that includes motor and locking mechanisms -
.89” (22.6mm) x 3.88” (98.56mm) x .94” (23.88mm).
Operating instructions can be obtained by following this link.
