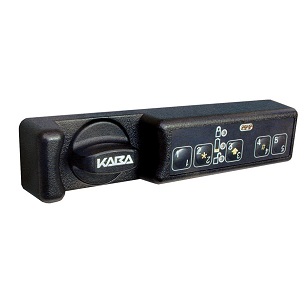

KABA MAS Unicon CL10 - Multi-Use Cabinet Locks

Designed for personal storage applications, the CL10 is ideal for locations that require access by a single user for short term or long term usage. An administrative support structure is also provided in the way of specific users who can program the lock and access the lock if required.
Short or Long Term Personal Storage for A Single Lock User
4-7 digit programmable access code for short term or long term personal storage.
Administrative Support & Access Control
Master User serves as lock administrator and can add up to 124 Manager Users to the lock. Manager Users are assigned a 3-digit user ID and can select a unique 5-digit PIN.
Touch Key Number Pad
Five button keypad accepts access combinations and user commands.
Power
Two CR-2 lithium 3v batteries in main housing.
Installation
Four common mounting orientations, for wood and sheet metal applications.
Bolt Designs
Manual return dead bolt or cam latch, or automatic spring loaded latch bolt.
Available PC Software
Unicon CL Series Software available for lock administration, programming and data retrieval.

Audit Trail
An event is recorded with date and time stamp whenever a function is performed at the lock. Both opening and closing events are recorded in addition to other activity. User ID is also
recorded if applicable. (Requires Unicon CL Series Software to retrieve and report an audit.)
Wrong Try Lock-Out
After three consecutive failed combination attempts, lock is disabled for three minutes. Additional consecutive failed attempts will result in another three minute penalty after each failed attempt.
Key Override (optional)
Key override sensor kit allows cabinet key to override lock and allow entry. This will be recorded in the lock audit.

FEATURES/SPECIFICATIONS
Power Source: (2) High quality CR-2 Lithium 3v batteries. (Not supplied.)
35,000 cycles at ambient temperature.
Keypad: One universal keypad allows for mounting lock in different orientations. Keypad has 5 buttons and three LEDs – lock open, lock closed and battery low indicator.
Bolt/Cam Styles: Manual turn dead bolt, manual camlatch, or spring loaded latch bolt with variations in bolt and cam positioning allowed.
Users: Allowance for one temporary Lock User (short term usage or long term usage) and a maximum of 125 administrative users (one Master User and 124 Manager Users).
Manage/Control: The Master User administrates the lock and can add Manager Users. The Master User and Manager Users can access the lock if required.
Audit Trail: 400 events (including opening and closing) stored in the lock with time and date stamp, can be downloaded to PC via a Dallas iButton Reporting (Red) Key Fob. (Requires Unicon CL Series Software.)
Uploadable Programming: Information can be loaded at the PC and transferred to the lock via a Dallas iButton Programming (Teal) Key Fob. (Requires Unicon CL Series Software.)
Mechanical Construction: Lock front - Black, injection-mold polycarbonate, 1.25” (31.71 mm) x 5.63” (143 mm) x .85” (21.6 mm). Turn knob - Black powder coat zinc diecast, clutch mechanism prevents opening of lock when over-torqued.
Chamber - Metal electro-mechanical assembly that includes motor and locking mechanisms -
.89” (22.6mm) x 3.88” (98.56mm) x .94” (23.88mm).

Operating instructions can be obtained by following this link.
