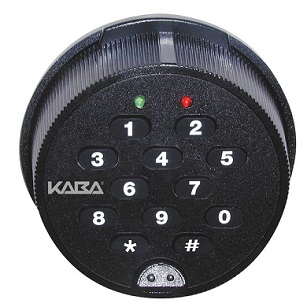

KABA MAS AUDICON 252 Electronic Lock
This U.L. Type 1 rated safe lock easily replaces traditional mechanical Group I and Group II locks. The Auditcon Model 252 is perfect for security applications where shared access and audit capability are necessary.
- 20 users/100 record audit
- 8 digit access combination
- Faster power-up
- Replaces mechanical Group I and Group II locks
- Wrong try lockout (5 attempts) for three minutes
- Dead bolt & slide bolt available
- UL listed, Type 1 high security electronic locks
- UL/VdS/DNV/ECB•S certification
Numerical Keypad
Quick Entry.
Wrong Try Lockout
The lock will not allow access to any user for a period of 3 minutes after 5 incorrect combinations are entered. Any additional consecutive failed entry attempts result in another 3 minute lockout.
Easy Retrofit
The lock case has the same footprint as most mechanical locks making it easy to install.
Users
Up to 20 users.
8 Digit Access
Users have an 8 digit combination which includes a 2 digit user ID and a 6 digit user selected PIN.
Audit Trail
Number of entries/activities is 100 records in sequential order.
Available PC Software
Print, display or file the lock audit reports using a program which runs under Microsoft Windows® Software.
- Program Lock Setup Option
- Add/Delete Users
- Audit Download Reports
- User Table Download Reports
Supervisor/Subordinate Mode
Allows access by a subordinate only after being enabled by a supervisory combination. Once enabled, a subordinate user has access to the lock during any valid opening time.
Dual Custody
Two Person Integrity, which requires two users to open the lock.
Alarm Interface
(Optional) Activates the lock's duress condition, sending a silent alarm, when combined with a connection to an existing alarm system.
Time Delay Mode
Programmable 1-99 minutes before access is allowed.(Purchased Separately)
| Electronic combination lock |
|---|
| Auditcon 252 - standard |
| Input Units |
|---|
| Round, buttons in the face of the lock |
| Vertical, buttons across the top of the lock |
| Lock |
|---|
| Dead bolt |
| Slide bolt |
| Spindle/cable |
|---|
| For door thickness up to 220 mm |
| For door thickness up to 460 mm |
| Accessories |
|---|
| Auditcon 2 Series Software Audit retrieve and upload of basic programmings from the PC software to the lock via Smart Key. Based on Microsoft Windows® operating systems (98 SE, 2000 PRO, XP PRO). (includes CD with software, manual, cable, 2-port key reader, serial adapter and Smart Key) • Basic lock settings • Add/Delete users • Audit readout • User profile readout |
| Auditcon 2 Series Software upgrade - based on Microsoft Windows® Prerequisite: Auditcon Audit only Software Audit retrieve and upload of basic programmings from the PC software to the lock via Smart Key. Based on Microsoft Windows® operating systems (98 SE, 2000 PRO, XP PRO). (includes CD with software, manual, cable, 2-port key reader, serial adapter and Smart Key) • Basic lock settings • Add/Delete users • Audit readout • User profile readout |
| Smart Key SA – Smart Key to read out the audit |
| Duress Alarm Interface – Interface for the duress alarm (silent alarm) |
| Time Delay Display – LCD-display for time delay and opening window |
Functionality
| Code Functions |
|---|
| Single mode Dual mode Master/Manager control Supervisor/Subordinate mode (shift mode) Courier code (interruption of time delay) Shelve function Wrong try lockout after 5 false codes Duress alarm (silent alarm) |
| Time Lock Functions |
|---|
| Time delay Opening window |
Operating instructions can be found here.
